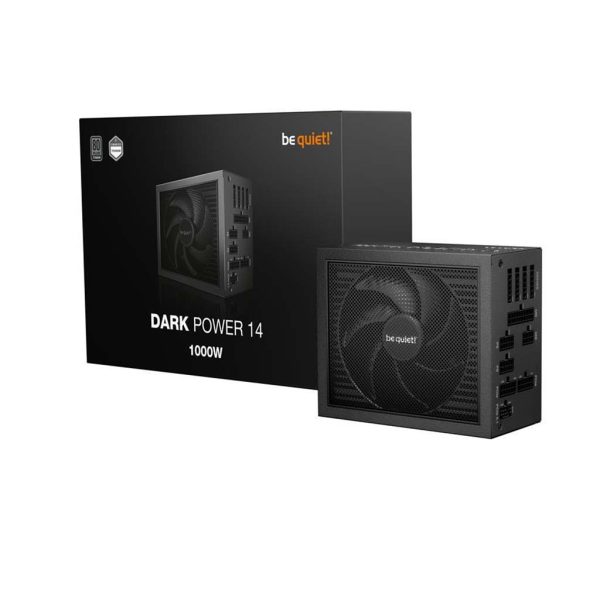

PSU 1000W BE QUIET! DARK POWER 14 w/PCIe 5.1, 80 Plus TITANIUM FULL MODULAR, BP020EU

Model name: BE QUIET! DARK POWER 14
Specification :

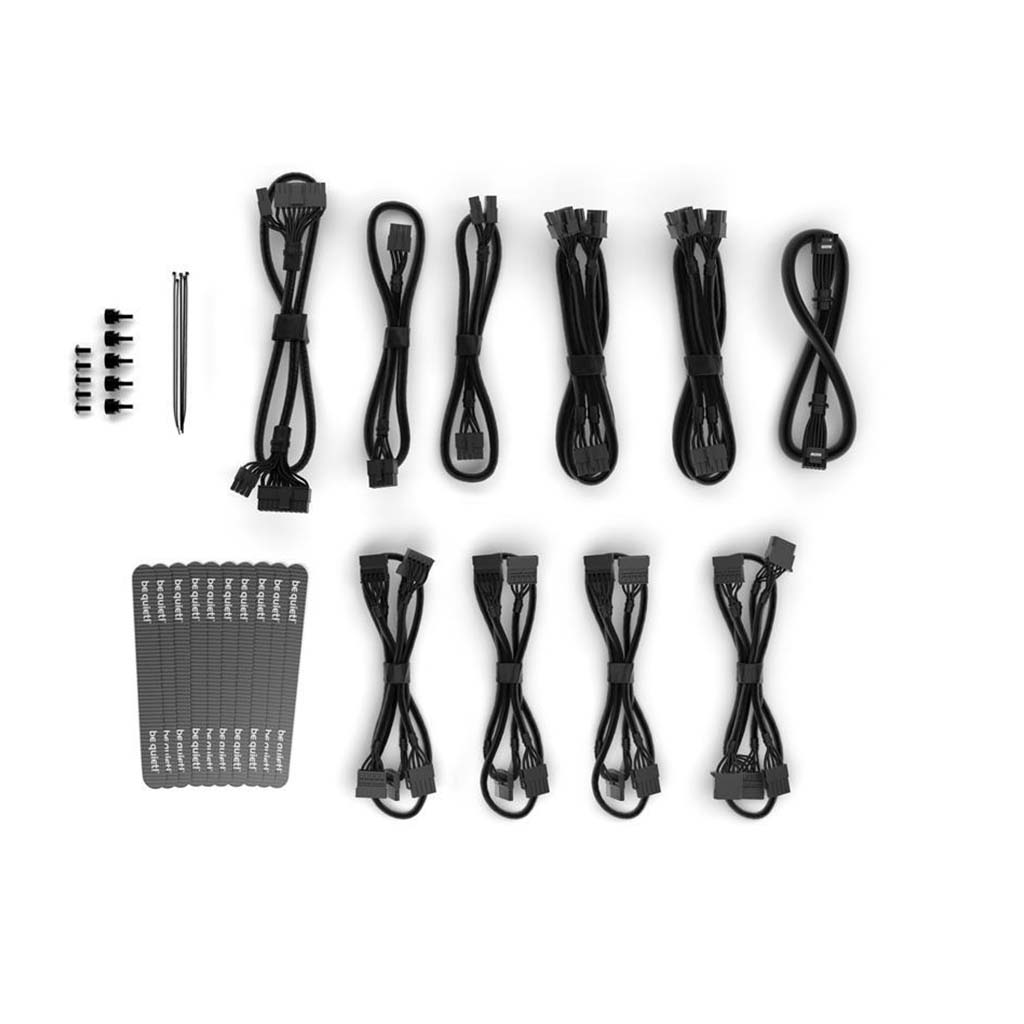

Cables and connectors
Modular cables: ✓
Sleeved cables: ✓
Flat cables: ✓
Maximum cable length (cm): 105
Cable length to motherboard (cm): 60
No. of cables: 10
ATX-Motherboard (20+4-pin): 1
P4+4 (CPU): 1
P8 (CPU): 1
12V-2×6 cables: 1
PCI-e 6+2-pin (GPU): 4
SATA: 13
PATA: 2
General
Continuous power (W): 1000
Peak power (W): 1100
Form factor: ATX 3.1
Form factor EPS 12V: Version 2.92
Topology: Full bridge + LLC + SR + DC/DC
Digitally controlled: ✓
Voltage (Vac): 100 – 240
Frequency (Hz): 50 – 60
Input current (A): 7
Power factor at 100% load: >0.98
Modern standby: ✓
Power consumption in standby (W): <0.15
Average life time (h / 25°C): >100,000
Operating temperature up to (°C): 40
Efficiency
80 PLUS certification: Titanium
Efficiency (%) at 230V, 2% load: 73.6
Efficiency (%) at 230V, 10% load: 91.7
Efficiency (%) at 230V, 20% load: 94.6
Efficiency (%) at 230V, 50% load: 95.5
Efficiency (%) at 230V, 100% load: 93.8
Fan and cooling technology
Cybenetics Noise Rating: Titanium
Fan: Silent Wings
Fan size (mm): 135
Bearing technology: FDB
Motor technology: 6-pole fan motor
Max. fan speed (rpm): 2100
dB(A) at 10% load: 8
dB(A) at 20% load: 8
dB(A) at 50% load: 8
dB(A) at 100% load: 18.2
Output
Multi-rail operation (12V rails): 4
Overclocking key: ✓
+3.3V (A): 25
+5V (A): 24
+12V1 (A): 33
+12V2 (A): 33
+12V3 (A): 40
+12V4 (A): 40
-12V (A): 0.5
+5Vsb (A): 3
Max. combined power 12V (W): 996
Max. combined power 12V-2×6 (W): 600
Max. combined power 3.3V + 5V (W): 120
Hold-up time at 80% load (ms): 20.1
Power good signal (ms): 100 – 150
Protection
OTP (over temperature protection): ✓
OCP (over current protection): ✓
OPP (over power protection): ✓
SCP (short circuit protection): ✓
OVP (over Voltage protection): ✓
UVP (under Voltage protection): ✓
SIP (Surge & Inrush protection): ✓
