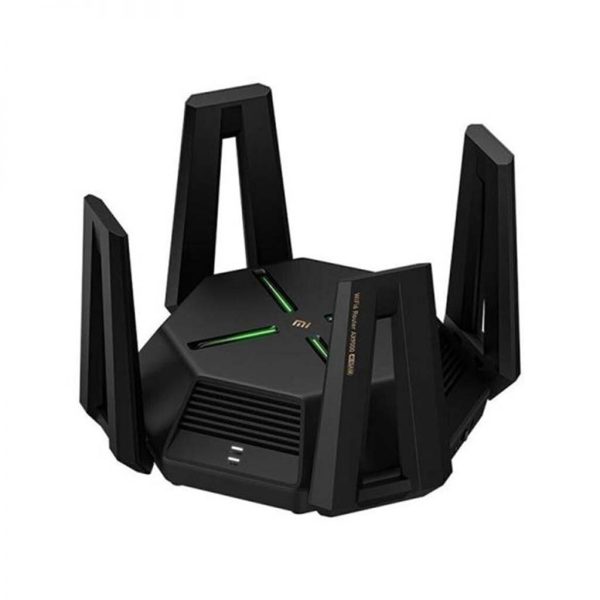

NET ROUTER WIRELESS DUAL BAND AX9000 XIAOMI MI Tri-Band Wifi 6 w/ 12 antennas, x1 2.5Gbps WAN/LAN port, x4 GIGABIT

ProcessorQualcomm® IPQ8072 quad-core A53 2.2GHz CPU

Network processing unitDual core 1.7GHz NPU

Memory1GB

2.4G Wi-Fi

4×4 (supports up to IEEE 802.11ax protocol, the theoretical maximum rate is 1148Mbps)

5GHz-1 Wi-Fi

4×4 (supports up to IEEE 802.11ax protocol, the theoretical maximum rate is 4804Mbps)

5GHz-2 Wi-Fi

4×4 (supports up to IEEE 802.11ax protocol, theoretical maximum rate is 2402Mbps)

AntennasExternal high gain antenna + internal AIoT antenna

Heat dissipationActive cooling

Total ports

10/100/1000/2500Mbps adaptive WAN/LAN port (Auto MDI/MDIX) ×1 10/100/1000Mbps adaptive WAN/LAN port (Auto MDI/MDIX) ×1 10/100/1000Mbps adaptive LAN ports (Auto MDI/MDIX)” ×3

LED indicator light

8 lights, include: System indicator × 1, Internet indicator × 1, Network port × 5, Atmosphere light × 1

System reset button×1

USB 3.0 port×1

Mesh networking button×1

Power button×1

Power input port×1

Protocol standardsIEEE 802.11a/b/g/n/ac/ax，IEEE 802.3/3u/3ab

Tri-band2.4GHz, 5GHz-1 and 5GHz-2

Modulation

11b：DSSS：DBPSK(1Mbps),DQPSK(2Mbps),CCK(5.5/11Mbps)

11a/g：OFDM:BPSK(6/9Mbps),QPSK(12/18Mbps),16QAM(24/36Mbps), 64QAM(48/54Mbps)

11n：MIMO-OFDM:BPSK,QPSK,16QAM,64QAM. Data rate：MCS0-MCS15

11ac：MIMO-OFDM:BPSK,QPSK,16QAM,64QAM,256QAM.

11ax：MIMO-OFDM:BPSK,QPSK,16QAM,64QAM,256QAM,1024QAM.

Data rates: MCS0-MCS11 (supports 4 streams).4096QAM.

Data rates: MCS12-MCS13 (supports 2 streams)

Operating systemMiWiFi ROM, a smart router operating system based on OpenWRT

WiFi Encryption

WPA-PSK/WPA2-PSK/WPA3-SAE encryption, Wireless access control (black and white list), SSID hidden

Management applicationsSupports Web, Android, iOS
