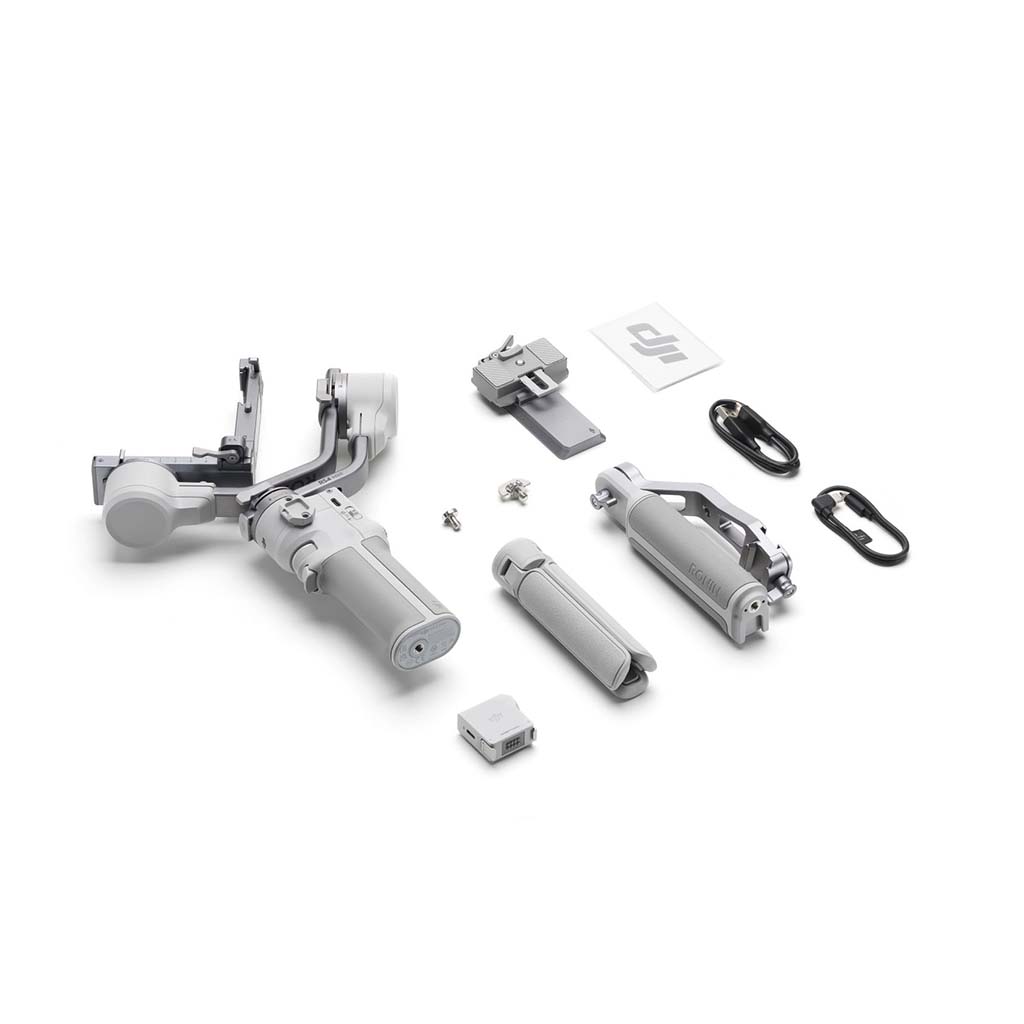

DJI RS 4 Mini Combo Gimbal Stabilizer

Accessory Port
NATO Port
1/4″-20 Mounting Hole
RSS Camera Control Port (USB-C)
Pogo Pin (compatible with the DJI RS Intelligent Tracking Module)
Battery
Model: BHX724-3100-7.2
Type: LiPo 2S
Capacity: 3100 mAh
Energy: 22.32 Wh
Max Runtime: 13 hours (stationary) *
Charging Specification: 9 V/2.5 A
Charging Time: Approx. 1 hour and 50 minutes **
Suggested Charging Temperature: 5° to 40° C (41° to 104° F)

Connections
Bluetooth 5.1
USB-C Charging Port
Ronin App Requirements
iOS 14.0 or above
Android 9.0 or above
Languages Supported by the Touchscreen
English, Simplified Chinese, Traditional Chinese, German, French, Korean, Japanese, Spanish, Portuguese (Brazil), Russian, Thai

Working Performance
Tested Payload
0.4-2 kg (0.88-4.4 lbs)
Maximum Controlled Rotation Speed
Pan: 360°/s
Tilt: 360°/s
Roll: 360°/s
Mechanical Range
Pan Axis: 360° continuous rotation
Roll Axis: -95° to +235°
Tilt Axis: -110° to +210°
Axis Locks
Auto
Vertical Shooting
Supported
Mechanical & Electrical Properties
Operating Frequency
2.4000-2.4835 GHz
Bluetooth Transmitter Power
< 4 dBm
Operating Temperature
-10° to 45° C (14° to 113° F)
Weight
Gimbal: Approx. 890 g (2 lbs) (including the Quick-Release Plate and excluding the tripod)
Extended Grip/Tripod: Approx. 140 g (0.3 lbs)
Dimensions
Folded: 236×64×316 mm (L×W×H, excluding the tripod and the Quick-Release Plate)
Unfolded: 175×182×338 mm (L×W×H, excluding camera, tripod, and the Quick-Release Plate)

Accessories
DJI RS Intelligent Tracking Module
Weight: 19 g
Dimensions: 33.5×17.5×38.5 mm (L×W×H)
Tracking Distance: 0.5-10 m
Operating Environment: Illuminance > 20 lux
Trigger Modes: Gimbal trigger, gesture
Gesture Functions: Start/stop of tracking, start/stop of recording, framing adjustment
Power Consumption: < 1 W
Operation Temperature: -10 to 45° C (14° to 113° F)
Mounting Method: Magnetic attachment
DJI RS 4 Mini Phone Holder
Weight: 92.5 g
Dimensions: 50×48×95.15 mm (L×W×H)
