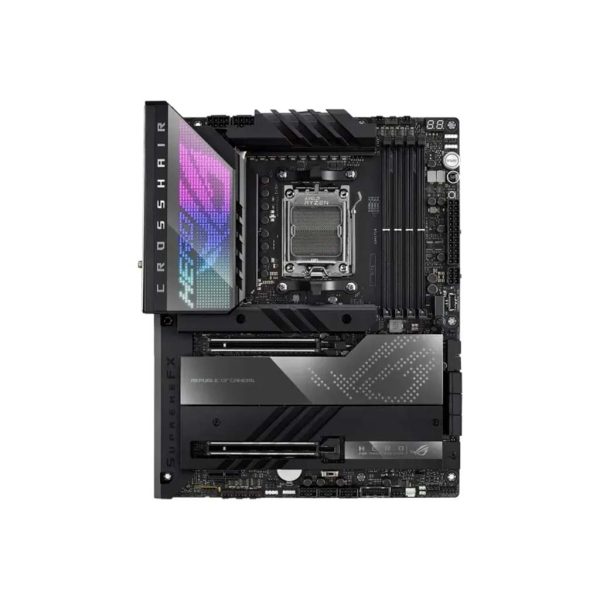

ASUS ROG CROSSHAIR X870E HERO – Socket AM5

ASUS ROG CROSSHAIR X870E HERO – Socket AM5
Chipset: AMD X870E
Memory: 4 x DIMM slots
max.192GB
DDR5
Supports up to 8200+MT/s(OC) with Ryzen 9000 Series Processors
8600+MT/s(OC) with Ryzen 8000 Series Processors
8000+MT/s(OC) with Ryzen 7000 Series Processors
ECC and Non-ECC
Un-buffered Memory*
Dual channel memory architecture
Supports AMD Extended Profiles for Overclocking (EXPO)
Graphics: 1 x HDMI port*
2 x USB4® (40Gbps) ports support USB Type-C® display outputs**
2 x PCIe 5.0 x16 slots with Q-Release Slim (supports x16 or x8/x8** or x8/x4/x4 modes***)
Storage: Supports 5 x M.2 slots and 1 x SlimSAS connector and 4 x SATA 6Gb/s ports*
M.2_1 slot (Key M)
type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
M.2_2 slot (Key M)
type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
M.2_3 slot (Key M)
type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
AMD X870E Chipset: M.2_4 slot (Key M)
type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
M.2_5 slot (Key M)
type 2280 (supports PCIe 4.0 x4 mode)
SlimSAS slot supports PCIe 4.0 x4 mode
4 x SATA 6Gb/s ports
Ethernet: 1 x Intel 2.5Gb Ethernet
1 x Realtek 5Gb Ethernet
Wireless & Bluetooth: Wi-Fi 7* 2×2 Wi-Fi 7 (802.11be)
Supports 2.4/5/6GHz frequency band**
Bluetooth v5.4***
USB: Rear USB (Total 10 ports)
2 x USB4 (40Gbps) ports (2 x USB Type-C)
8 x USB 10Gbps ports (6 x Type-A + 2 x USB Type-C)
Front USB (Total 10 ports)
1 x USB 20Gbps (supports USB Type-C with up to 60W PD/QC4+)*
1 x USB 20Gbps connector (supports USB Type-C)
2 x USB 5Gbps headers support 4 additional USB 5Gbps ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
USB Type-C power delivery output: max. 5V/3A
Audio: ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4082*
Back Panel I/O Ports: 2 x USB4 (40Gbps) ports (2 x USB Type-C)
8 x USB 10Gbps ports (6 x Type-A + 2 x USB Type-C)
1 x HDMI port
1 x Wi-Fi module
1 x Intel 2.5Gb Ethernet port
1 x Realtek 5Gb Ethernet port
2 x Gold-plated audio jacks
1 x Optical S/PDIF out port
1 x BIOS FlashBack button
1 x Clear CMOS button
Internal I/O Connectors: Fan and Cooling Related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
4 x 4-pin Chassis Fan headers
1 x W_PUMP+ header
Power Related: 1 x 24-pin Main Power connector
2 x 8-pin +12V CPU Power connector
1 x 8-pin PCIe Power connector
Storage Related: 5 x M.2 slots (Key M)
1 x SlimSAS connector
4 x SATA 6Gb/s ports
USB: 2 x USB 20Gbps connectors (support USB Type-C)
2 x USB 5Gbps headers support 4 additional USB 5Gbps ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
Miscellaneous: 3 x Addressable Gen2 headers: 1 x Alteration PCIe mode switch
1 x FlexKey button
1 x Front Panel Audio header (F_AUDIO)
1 x ReTry button
1 x Start button
1 x 10-1 pin System Panel header
1 x Thermal Sensor header
1 x LN2 Mode jumper
Special Features: Extreme OC Kit
– FlexKey button
– LN2 Mode
– ReTry button
– Start button
Extreme Engine Digi+
– 10K Black metallic capacitors
– MicroFine alloy choke
Aura Sync: – Addressable Gen2 header(s)
Front Panel USB 20Gbps with Quick Charge 4+ Support
– Support: up to 60W fast charging and USB Wattage Watcher*
ATX Form Factor: 30.5 cm x 24.4 cm
90MB1IE0-M0EAY0
