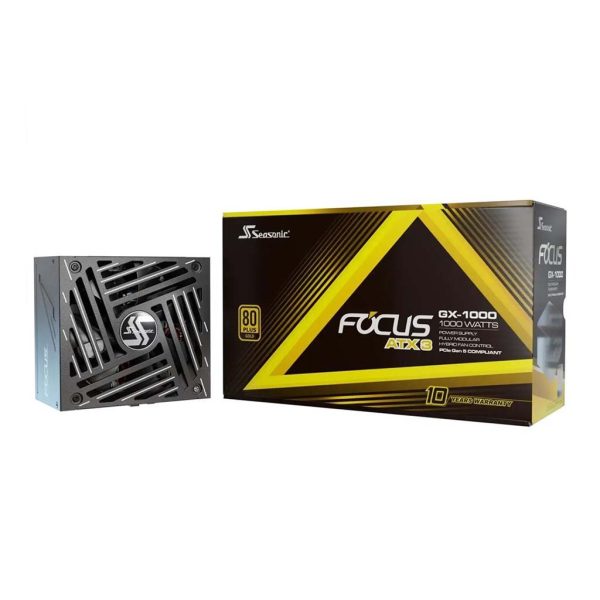

PSU 1000W SEASONIC FOCUS GX-1000 (2024) w/PCIE 5.0 80+ GOLD , Fully Modular, FOCUS-GX-1000-V4

Model name: SEASONIC FOCUS GX-1000
Specification :
80PLUS®: Gold
Cybenetics Efficiency Level: Gold
Cybenetics Noise Level: A-
Form Factor: ATX/EPS
Fan Information:
Fan Size: 135 mm
Fan Control: Digital Hybrid Fan Control
Fan Bearing: Fluid Dynamic Bearing
Life Expectancy: 50,000 hours at 40 °C, 15% – 65% RH
Cable Information:
Modularity: Fully Modular
Cable Type: Individual Black Cables with Braided Pattern
Electrical Features:
Operating Temperature: 0 – 50 °C
MTBF @ 25 °C, excl. fan: 100,000 hours
AC Input: Full Range
Protection: OCP, OPP, OTP, OVP, SCP, UVP
Safety and Environmental:
Safety and EMC: CB, CCC, CE, cTUVus, EAC, TUV, BSMI, FCC
Environmental Compliance: Energy Star, ErP Lot 6, REACH, RoHS, WEEE
AC Input: 100 V – 240 V
Input Current: 13 – 6.5 A
Frequency: 50 Hz – 60 Hz
DC Output:
+3.3 V: 25 A
+5 V: 25 A
+12 V: 83 A
-12 V: 0.3 A
+5 VSB: 3 A
Maximum Power:
+3.3 V: 125 W
+5 V: 125 W
+12 V: 996 W
-12 V: 3.6 W
+5 VSB: 15 W
Total Continuous Power: 1000 W
